ETNA ADVANCE 600 PIR

Description

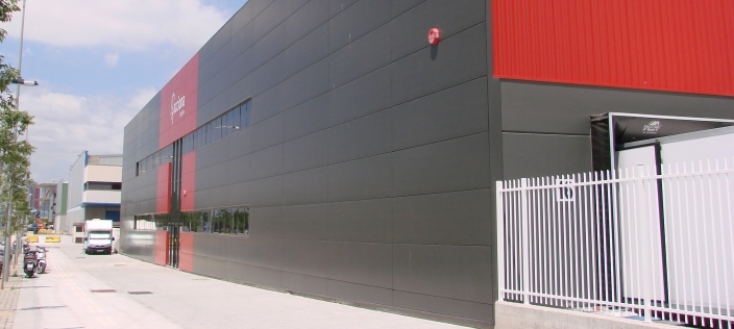

Europerfil ETNA ADVANCE 600 PIR architectural facade sandwich panel. CE marking (EN 14509). Fire reaction Euroclase B-s1,d0. Tongue and groove sealed system with hidden fixture. Thicknesses from 50 mm, width 600 mm (other widths: 900 and 1000 mm); comprising exterior and interior shell in galvanised pre-lacquered steel with thicknesses of 0.75mm exterior/0.5mm interior (EN 10169) in standard Europerfil colours and coatings; rigid polyisocyanurate (PIR) foam core. It offers an architectural aesthetic thanks to its smooth exterior finish, tongue-and-groove joint with concealed fastening, and recessed joint in relation to the panel plane on all four sides. Horizontal assembly. The panel is supplied with self-drilling fixture and reinforcement shell. The correct installation of the ETNA Advance panel requires a system of longitudinal and transversal EPDM seals. Auxiliary complements: start pins.
This product is manufactured in: Steel , Polyisocianurat (PIR)

Please note the recommendations for the selection, handling, storage, and assembly of PIR sandwich panels for façade use.
